Phoenix

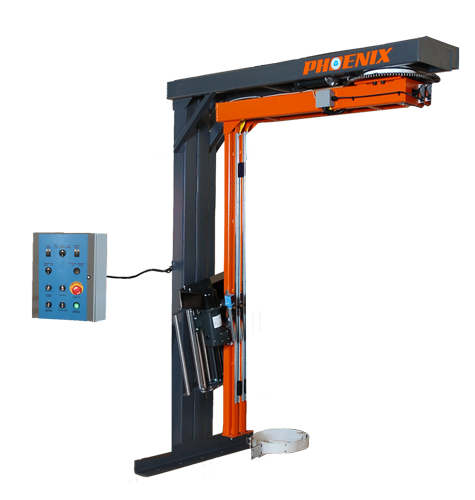

Phoenix PRTW-2150┃Stretch Wrapping Machines

Semi-Automatic Rotary Arm Stretch Wrapper

Excellent for the typical warehouse environment; it provides consistent, repeatable stretch wrapping performance. Due to Phoenix’s focus on engineering, manufacturing, and supporting our customers with a rugged line of Stretch Wrapper Equipment; Phoenix’s PRTW-2150 rotary arm Stretch wrapping machine is constructed with a heavy-duty steel steel Frame designed to increase the machine’s durability, while the HSS tubing provides a strong and light-weight arm. While The PRTW 2150’s wall mounted frame is perfect for companies who need a stretch wrapping machine but have a minimal amount of space available. This rotary arm stretch wrapper is the best solution in situations where the load is very unstable (very tall, too heavy, too light) or in a wash down environment.



  • Automatic Load Height sensing photoeye is mounted in the stretch film carriage with adjustable track
  • Phoenix’s operator interface control offers options and flexibility and provides all features as standard. Complete with wrapping flexibility including 3 wrapping cycles, reinforce wrap and cycle pause capability, Keypad Control Panel with Variable Speed Drive
  • Heavy-Duty structural steel tubing and frame
  • Ring Bearing Support and Drive System
  • 14 RPM table speed larger, variable speed drives control all motors for maximum flexibility, heavier, and faster wrapping than most competitive machines
  • High Resolution Pulse Count System for table rotation provides precise top and bottom wrap counts and aligns the table back to its original start position
  • Engineered for smooth and long-lasting operation



Machine Weight Approx. 2500 lbs
Machine Dimensions 90" L x 149" W x 120" H (Extensions to increase load size available)
Max. load size 56" x 56" x 80"
Max. load weight unlimited
Power Requirements 120 VAC. 15 Amp.
Cycle Time 5-40 loads per hour
