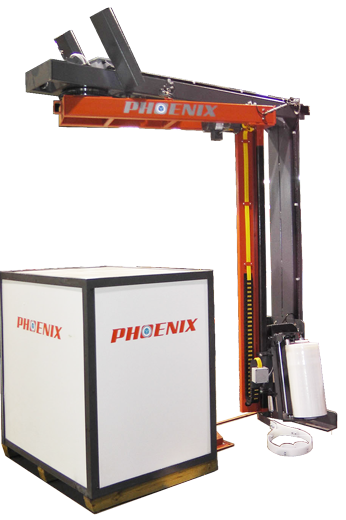

Phoenix PRTL-2150A┃Automatic Stretch Wrapping Machines
Fully Automatic Rotary Arm Stretch Wrapper
Excellent for the typical warehouse environment; it provides consistent, repeatable stretch wrapping performance. Due to Phoenix’s focus on engineering, manufacturing, and supporting our customers with a rugged line of Stretch Wrapper Equipment; Phoenix’s PRTL-2150A rotary arm Stretch wrapping machine is constructed with a heavy-duty steel frame designed to increase the machine’s durability, while the HSS tubing provides a strong and light-weight arm. This rotary arm stretch wrapper is the best solution in situations where the load is very unstable (very tall, too heavy, too light) or in a wash down environment. The PRTL-2150A is available in 3 mounting configurations, Wall Mount, Floor Mount and Free Standing Gantry, to suit our clients needs.
- 3 mounting configurations, Wall Mount, Floor Mount and Free Standing Gantry
- Automatic Load Height sensing photoeye is mounted in the stretch film carriage with adjustable track
- PLC controller with Pushbutton Operator Interface offers unlimited flexibility
- Pneumatic Controlled Cut & Wipe System
- Allen Bradley Power Flex Series variable frequency drive controls all motors on the machine
- Separate up and down carriage speeds eliminates the time and wasted stretch film
- Rugged all-structual steel construction reflects the durability of this machine. HSS tubing provides a strong and light-weight arm minimizing the driving forces required to rotate the arm
Machine Weight | Approx. 3000 lbs. |
Machine Dimensions | 120” H x 179” L x 44” W |
Max. load size | 52 x 52 x 80” |
Max. load weight | unlimited |
Power Requirements | 120 VAC / 1 PH / 60 HZ |
Cycle Time | 30 loads per hour |
Pneumatic requirements | 3 CFM @80 PSI |
