Phoenix

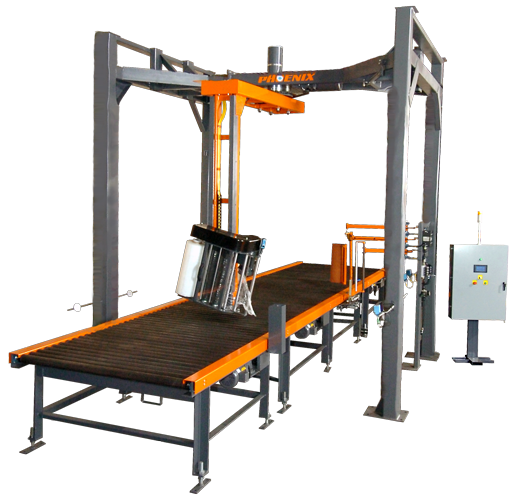

Phoenix PRTA-2200┃Stretch Wrapping Machines
Automatic Conveyorized Rotary Arm Stretch Wrapper
Excellent for heavy or unstable loads and is commonly used in-line with the rest of the packaging line and provides consistent, repeatable stretch wrapping performance. Due to Phoenix’s focus on engineering, manufacturing, and supporting our customers with a rugged line of Stretch Wrapper Equipment; Phoenix’s PRTA-2200 rotary arm Stretch wrapping machine is constructed with a heavy-duty over-head Gantry Frame with 4-legs, provides solid machine support and trouble-free operation. While the rugged conveyors have been engineered for smooth and long-lasting operation allowing for the machine to wrap Up to 60-80 loads Per Hour with 4,000 lbs weight capacity.
- Automatic Load Height sensing photoeye is mounted in the stretch film carriage with adjustable track.
- Heavy-Duty structural steel tubing and frame.
- Pneumatic Controlled Cut & Wipe System
- 18" System Top of Rollers for conveyors
- Allen Bradley Micrologix Controller with a Touchscreen Operator Interface offers unlimited flexibility
- 4,000 lbs weight capacity
- 25 RPM table speed larger, variable speed drives control all motors for maximum flexibility, heavier, and faster wrapping than most competitive machines.
- High Resolution Pulse Count System for table rotation provides precise top and bottom wrap counts and aligns the table back to its original start position.
- Engineered for smooth and long-lasting operation. 56" x 56 " x 80" load size
Machine Weight | Approx. 4,000 lbs. |
Machine Dimensions | 255" L x 133" W x 150" H |
Max. load size | 56" x 56" x 80" |
Max. load weight | 4,000 lbs |
Power Requirements | 230 VAC /3 PH / 60 HZ |
Cycle Time | 60-80 loads per hour |
Pneumatic requirements | 3 CFM @80 PSI |
