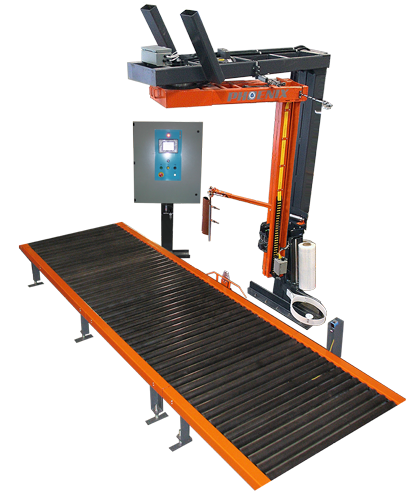

Phoenix PRTA-2100┃Stretch Wrapping Machines
Automatic Conveyorized Rotary Arm Stretch Wrapper
Excellent for Heavy or unstable loads and is commonly used in-line with the rest of the packaging line. It provides consistent, repeatable stretch wrapping performance. Due to Phoenix’s focus on engineering, manufacturing, and supporting our customers with a rugged line of Stretch Wrapper Equipment; Phoenix’s PRTA-2100 rotary arm Stretch wrapping machine is constructed with a heavy-duty over-head Cantilevered frame, with rugged conveyors have been engineered for smooth and long-lasting operation, provides solid machine support and trouble-free operation allowing for up to 40 loads per hour with 4,000 lbs weight capacity.
- Automatic Load Height sensing photoeye is mounted in the stretch film carriage with adjustable track
- Heavy-Duty structural steel tubing and frame.
- 18" System Top of Rollers for conveyors
- Allen Bradley Micrologix Controller with a Touchscreen Operator Interface offers unlimited flexibility
- 4,000 lbs weight capacity
- 12 RPM table speed larger, variable speed drives control all motors for maximum flexibility, heavier, and faster wrapping than most competitive machines
- High Resolution Pulse Count System for table rotation provides precise top and bottom wrap counts and aligns the table back to its original start position
- Engineered for smooth and long-lasting operation. 52" x 52" x 80" load size
Machine Weight | Approx. 4,000 lbs. |
Machine Dimensions | 258" L x 190" W x 161" H |
Max. load size | 52" x 52" x 80" |
Max. load weight | 4,000 lbs |
Power Requirements | 230 VAC /3 PH / 60 HZ |
Cycle Time | 40 loads per hour |
Pneumatic requirements | 3 CFM @80 PSI |
