Phoenix

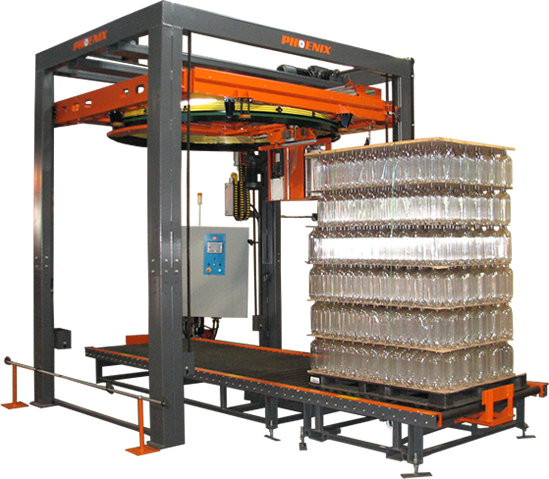

Phoenix PRRA-4000┃Pallet Wrapping Machines
Rotary Ring Pallet Wrapper
Provides revolutionary film saving compared to rotary table or arm designs. The film carriage is supported and rotated using a 96" diameter ring. Unlike a traditional turntable or rotary arm machine that must support and rotate thousands of pounds of mass just to apply the stretch film, the PRRA rotates only the carriage itself. The result is a much faster "low mass rotation system" that because of the limited stress and strain on the working component is much better suited for 24hr/7 days a week applications , with a 40 RPM allowing for 120+ load per hours. This new high speed model with Heavy four-post frame design for stability enabling the PRRA 4000 to start and stop the cycle anywhere on the load reducing stretch film cost drastically when compared to conventional rotary arm and turntable style wrappers.
- Allen Bradley Micrologix PLC Controller, and Allen Bradley Operator Interface plus the rotary ring design allows for virtually unlimited wrap patterns due to the options and features of the Allen Bradley MicroLogix PLC and the ability to start and complete a wrapping cycle anywhere during the wrap c
- Heavy-Duty structural steel tubing and frame.
- 40 RPM table speed larger, variable speed drives control all motors for maximum flexibility, heavier, and faster wrapping (higher speeds are available)
- Engineered for smooth and long-lasting operation. 48" x 50" x 80” load size, 4,000 lbs. weight capacity
- Built in heat sealer and film tail treatment
- Multiple standard wrapping cycles for improved film economies
- The PRRA Rotary Ring style wrapper is able to start at the bottom of a load and finish at the top without having to return back down to the clamp fixed at the conveyor. This means that you can save an extra 30+ feet of stretch film while still applying the same required load retention wraps
- Compact footprint design takes 25% less space than conventional rotary arm style wrappers
Machine Weight | Approx. 4000 lbs |
Machine Dimensions | 131" L x 156" W x 138" H (Extensions Available) |
Max. load size | 48" W x 50" L x 80" H |
Min. load size | 36" W x 36" L x 24" H |
Max. load weight | 4000 lbs. |
Power Requirements | 230 VAC / 3 PH / 60 HZ |
Cycle Time | 120+ loads per hour |
Pneumatic requirements | 3 CFM @80 PSI |
