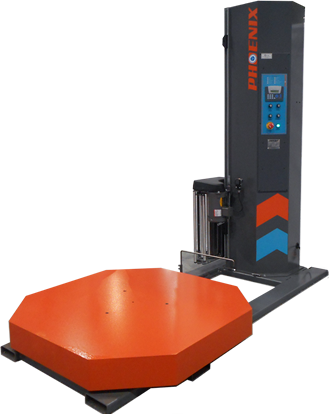

Phoenix PHP-2100┃Pallet Wrapping Machines
Semi-Automatic Pallet Wrapper
Excellent for the typical warehouse environment; it provides consistent, repeatable stretch wrapping performance. Due to Phoenix’s focus on engineering, manufacturing, and supporting our customers with a rugged line of Stretch Wrapper Equipment; the PHP-2100 boasts a 4000lb Load Weight Capacity, Largest Stretch Wrapper Turntable Capacity in its Class. With a 15 RPM Stretch Wrapping Speed the PHP-2100 is the fastest stretch wrapper in its class capable of wrapping over 40 pallets per hour.
- Independent variable speed up/down carriage control
- Forklift portable from either end of machine frame.
- Automatic Load Height sensing photoeye is mounted in the stretch film carriage with adjustable track
- Phoenix’s operator interface control offers options and flexibility and provides all features as standard. Complete with wrapping flexibility including 3 wrapping cycles, reinforce wrap and cycle pause capability, Keypad Control Panel with Variable Speed Drive
- Heavy-Duty structural steel tubing and frame
- 15 RPM table speed larger, variable speed drives control all motors for maximum flexibility, heavier, and faster wrapping than most competitive machines
- High Resolution Pulse Count System for table rotation provides precise top and bottom wrap counts and aligns the table back to its original start position
- Engineered for smooth and long-lasting operation. 56" x 56" x 80" load size, 4,000 lbs. weight capacity turntable c/w 5 heavy duty casters on welded supports
Machine Weight | pprox. 2500 lbs. |
Machine Dimensions | 96" L x 56" W x 86" H (Extensions to increase load size available) |
Max. load size | 54" x 54" x 80" |
Max. load weight | 4,000 lbs |
Power Requirements | 120 VAC. 15 Amp. |
Cycle Time | 40 loads per hour |
