Phoenix

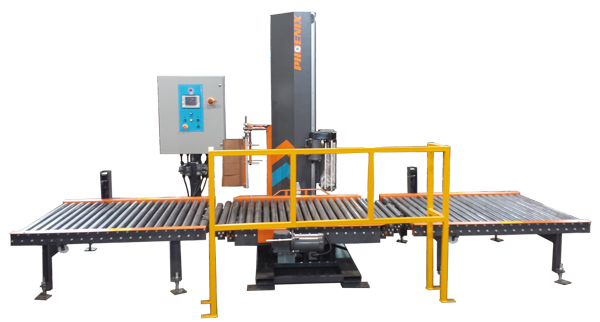

Phoenix PCTA-2300┃Automatic Pallet Wrapping Machines
Conveyorized Automatic Turntable Pallet Wrapper
Excellent for the typical warehouse environment; it provides consistent, repeatable stretch wrapping performance. Due to Phoenix’s focus on engineering, manufacturing, and supporting our customers with a rugged line of Stretch Wrapper Equipment; the PCTA-2300 boasts a 4000lb Load Weight Capacity, Largest Stretch Wrapper Turntable Capacity in its Class. With a 15 RPM Stretch Wrapping Speed the PCTA-2300 is the fastest stretch wrapper in its class capable of wrapping up to 40-50 pallets per hour.
- Automatic load height sensing photoeye is mounted in the stretch film carriage with adjustable track.
- Pneumatic controlled cut & wipe System with an Electronic stretch film tension control
- Independent variable speed up/down carriage controls
- Allen Bradley 1200 Micrologix Controller The PCTA control features an Allen Bradley 1200 PLC with pushbutton and selector switches and includes many features simply not available from competitors
- Heavy-Duty structural steel tubing and frame
- 15 RPM table speed larger, variable speed drives control all motors for maximum flexibility, heavier, and faster wrapping (higher speeds are available)
- High Resolution Pulse Count System for table rotation provides precise top and bottom wrap counts and aligns the table back to its original start position
- Engineered for smooth and long-lasting operation. 50" x 50" x 80” load size, 4,000 lbs. weight capacity turntable c/w Ring bearing turntable typically used on motor cranes, excavators, and army tanks due to their ability to withstand harsh environments while supporting large oversized structures
Machine Weight | Approx. 3500 lbs. |
Machine Dimensions | 119" L x 112" W x 107" H (Extensions available) |
Max. load size | 50" x 50" x 80” |
Max. load weight | 4,000 lbs. |
Power Requirements | 208- 240 VAC / 1 PH / 60 HZ / 20 A |
Cycle Time | 40-50 loads per hour |
Pneumatic requirements | 3 CFM @80 PSI |
