Phoenix

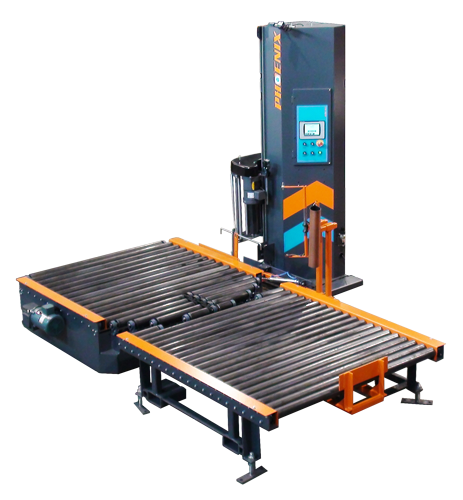

Phoenix PCTA-2000┃Automatic Pallet Wrapping Machines

Conveyorized Automatic Turntable Pallet Wrapper

Excellent for the typical warehouse environment; it provides consistent, repeatable stretch wrapping performance. Due to Phoenix’s focus on engineering, manufacturing, and supporting our customers with a rugged line of Stretch Wrapper Equipment; the PCTA-2000 boasts a 4000lb Load Weight Capacity, Largest Stretch Wrapper Turntable Capacity in its Class. With a 12 RPM Stretch Wrapping Speed the PCTA-2000 is the fastest stretch wrapper in its class capable of wrapping up to 35 pallets per hour.



  • Automatic Load Height sensing photoeye is mounted in the stretch film carriage with adjustable track
  • Pneumatic Controlled Cut & Wipe System with an Electronic stretch film tension control
  • Independent Variable speed up/down carriage control
  • Allen Bradley 1200 Micrologix Controller The PCTA control features an Allen Bradley 1200 PLC with pushbutton and selector switches and includes many features simply not available from competitors
  • Heavy-Duty structural steel tubing and frame
  • 12 RPM table speed larger, variable speed drives control all motors for maximum flexibility, heavier, and faster wrapping (higher speeds are available)
  • High Resolution Pulse Count System for table rotation provides precise top and bottom wrap counts and aligns the table back to its original start position
  • Engineered for smooth and long-lasting operation. 50" x 50" x 80” load size, 4,000 lbs. weight capacity turntable c/w Heavy Duty Table Support Casters



Machine Weight Approx. 3500 lbs.
Machine Dimensions 119" L x 112" W x 107" H (Extensions available)
Max. load size 50" x 50" x 80” load size
Max. load weight 4,000 lbs.
Power Requirements 208- 240 VAC / 1 PH / 60 HZ / 20 A
Cycle Time 35 loads per hour
Pneumatic requirements 3 CFM @80 PSI
