PAC Strapping

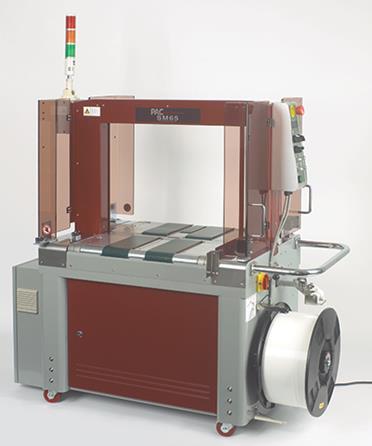

PAC SM65-FA┃Automatic Strapping Machines

FullyAutomatic Srapper

The SM65-FA is a world class fully automatic strapper that will automate your strapping operations at a very affordable price. At a cycle speed of 65 straps per minute it is one of the fastest strappers available in the market. Designed with ease of operation and simplicity in mind, the SM65-FA head has no belts or pulleys and uses the latest in brushless DC motors for an extremely high level of accuracy and reliability. All motors are German made. Backed by the best warranty in the industry, PAC maintains a network of factory trained technicians along with 99% plus parts availability within 24 hours. If you are looking for a fast, reliable, automatic strapper, you won’t find a better value than the SM65-FA.

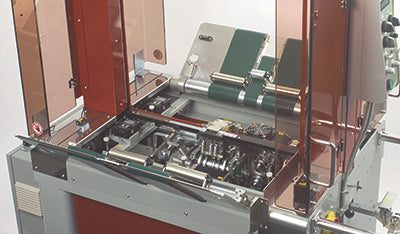

  • Simplified Strapping Head
  • Waist High Auto Feeding
  • Free Access to Strap Guides
  • Simplified Control Panel
  • Hinged Top Plates
  • Multiple Strap Patterns
  • Built-in Interlocking Plug
  • Adjustable Conveyer Speed

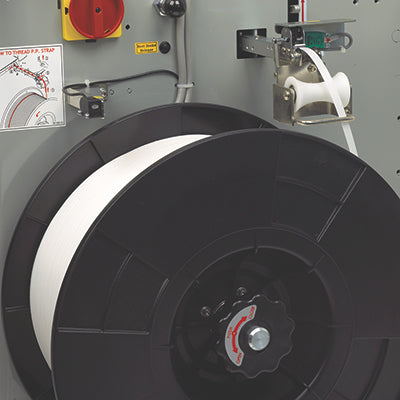

  • Automatic End of Coil Detection and Ejection
  • Adjustable Table Height
Machine Weight 496 lbs
Machine Dimensions 54.6”W x 25.4” L x 54.5 H
Max. load size Dependant on Arch
Min. load size 4.75” W x 5.2” L x 4” H
Max. load weight 77 lbs
Power Requirements 110V, Single phase 50-60 Hz, 7 Amps (Other power options are available)
Tension 1-120 lbs dependent on strap size
Strap Size 1/4”, 3/8”, 1/2”
Strap Core Size 8” x 8” (200mm x 200mm)
Sealing Method F
