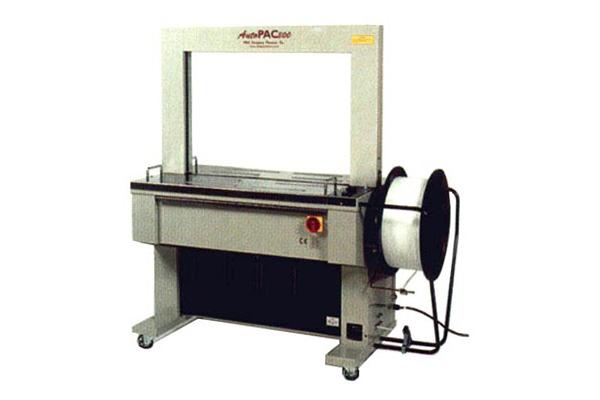

PAC 300┃Automatic Strapping Machines
Automatic Strapper
The Auto PAC 300 is fast, consistent and reliable — designed for moderate to high volume strapping operations using 3/8" or 1/2" strapping materials. The wide range of available arch sizes makes this a versatile system, capable of handling variable-sized packages at speeds up to 30 cycles per minute. Performance features include automatic strap loading, electronic strap tension controls, and three activation methods: manual, foot pedal or standard photocell. The Auto PAC 300 also includes a number of other high-productivity features, and is supported by an industry-best warranty.
- Up to 30 CPM
- Uses 3/8" or 1/2" Strap
- Lubrication-Free Strapping Head
- Three Activation Methods
- User-Friendly Control Panel
- Jam Free Automatic Strap Re-Feed
- Automatic Loop Ejection and Machine Re-Set
- End of Strap Sensor
Machine Dimensions | 56.3” W x 24.4”L x 60.6 “ H |
Max. load size | Dependant on Arch Size |
Min. load size | 5” W x 1 ¼” H |
Power Requirements | 110 VAC, 50/60Hz, Single Phase |
Cycle Time | 30 per minute |
Tension |
15-150 lbs |
Strap Size | 3/8” (9mm) – 1/2”(12mm) |
Strap Core Size | 8”x8” or 9”x8” |
Sealing Method | Heat Seal |
