Dynaric

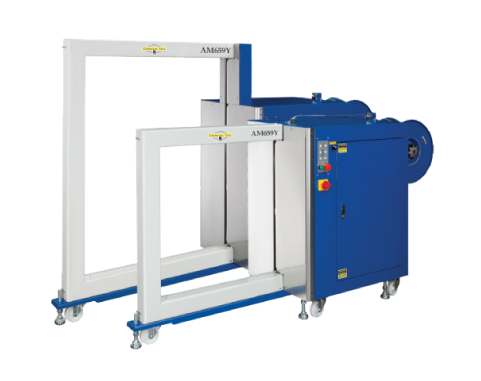

Dynaric AM659Y┃Automatic Strapping Machines

Economical High-Speed Automatic Box Strapper

Rolls up to almost any conveyor system. Designed with low energy servo motors allows the AM659Y box strapper the capability of applying up to 50 straps/minute to a wide range of banding, box sizes and types of packages. Equipped with heat seal technology the AM659Y provides a strong strap seal, up to 85% of the plastic strap tensile strength. The AM-659Y box strapper has the ability to use many sizes of Dynaric plastic strap, enabling the customer to choose the plastic strap that fits their budget and strapping requirements. The AM-659Y has many standard features, designed for ease of operation by equipment operators, include automatic coil feed system, strap loop ejector, short feed detector, refeed system and foot pedal cycle activation.

  • Low Energy servo motors for precise performance and elimination of belts, clutches and pulleys.
  • Wide range electronic tension control
  • Adjustable strap heat seal dwell time for optimum seal joint efficiency
  • Applies 50 straps/minute
  • Automatic coil feed system for ease of start up
  • End of strap sensor and strap loop ejector
  • Strap re-feed system in case of a short feed
  • Standard foot pedal activator and start cycle push button
  • Standard arch size available is 800mm Wide x 650mm High

Machine Weight 573 lbs
Machine Dimensions 1350mm L x 580mm W x 1050mm H
Power Requirements 110V, 220V 230V, 240V 50/60Hz, 1PH
Cycle Time 50 Straps per minute
Tension 2.2-121 lbs
Strap Size 9mm-12mm
Strap Core Size 200,230,280 (specified)
Sealing Method Heat Seal
