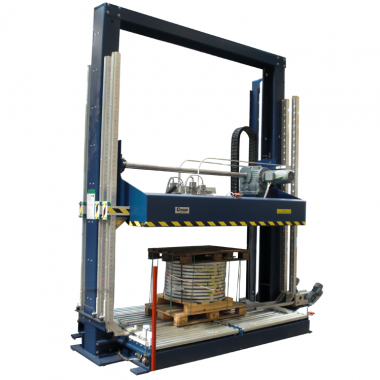

Cyklop XZE┃Automatic Strapping Machines

Compressing Automatic Strapping Machine

Comes in three models, the XZE 15, XZE 30 and the XZE 48, with the capability of pressing 335 lbs (XZE 15), 700lbs (XZE 30) or 1,100 lbs (XZE 48). The XZE comes with the Cyklop CFH-1 strapping head with integrated multistage tensioning, ensuring fast strapping and maximum tensioning. The Cyklop XZE can be easily integrated into a number of conveyer systems to suit any of your needs including palletised and palletless strapping options and can also be outfitted with two strapping heads rather than one.

• Basic frame, consisting of upper cross beams and two lifting columns with integrated chains or toothed rods, maintenance-free guide elements and standardised connection points for materials handling components
• Compression plate with strapping head mounts, chain sprocket drive or gearwheel drive with servo-controlled asynchronous motor and top-quality, maintenance-free guide shoes
• Optimum strapping results due to high, constant tensioning and retaining force
• Easy to integrate into existing systems
• Pressing force freely editable in PLC (1,100 lbs max.)
• Vertical cross strapping possible, e.g. by turntable or lifting/turning cross
• Easy and fast operator control from 5.7" colour touch panel
• No compressed air required
