Cyklop

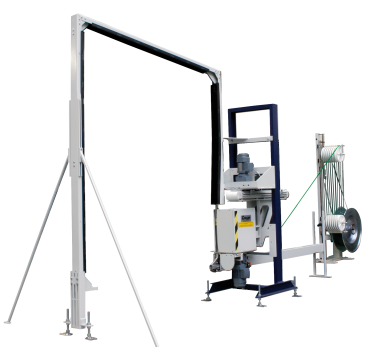

Cyklop XF/XP 112 M┃Automatic Strapping Machines
Automatic Side Sealing Vertical Strapping Machine
Designed to seamlessly integrate into any existing production lines. The XF/XP 112 M is equipped with leading strapping technology, the Cyklop CFH-1 strapping head including multi-stage tensioning (max 1250 lbs) and is electronically controlled with 5.7” touch panel display. The XF model contains a permanently closed strap chute, while the XP model includes a pallet lance for through pallet strapping.
- Compact, minimal space required.
- Easy access to all the mechanical components to facilitate service and maintenance.
- High strap tension, up to 1250 lbs.
- Modular adaptation to type and size of package.
- CFH-1 or CFL-2 strapping head is maintenance-friendly.
- Easy to integrate into existing conveyor lines. Adjustable height.
- Fully electric, 3-ph. + N.
- All machine functions are controlled electronically, with clear text display for operator guidance.
- The bottom section of the strapping arch can be a standard under track style (XF) or a pallet lance for through pallet strapping (XP).
Machine Weight | Determined by customer requirements |
Machine Dimensions | Determined by customer requirements |
Max. load size | 78” W x 118” H |
Min. load size | 12” W x 12” H |
Max. load weight | limited to conveyor capacity |
Power Requirements | 3/N/PE 220-480V 50/60Hz |
Tension | 1,250 lbs. (CFH -1) 500 lbs. (CFL-2) |
Strap Size | 9mm-19mm (3/8” – 3/4") |
Strap Thickness | 0.4mm-1.2mm (0.015” – 0.044”) |
Strap Core Size | 16” |
Sealing Method | Friction -weld |
