Cyklop
Cyklop XF/XP 111 M┃Automatic Strapping Machines
Automatic Top Sealing Vertical Strapping Machine
Designed to seamlessly integrate into any existing production lines. The XF/XP 111 M is equipped with leading strapping technology, the Cyklop CFH-1 strapping head including multi-stage tensioning (max 1250 lbs) and is electronically controlled with 5.7” touch panel display. The XF model contains a permanently closed strap chute, while the XP model includes a pallet lance for through pallet strapping.
- CFH-1 or CFL-2 strapping head is maintenance-friendly.
- Compact, minimal space required.
- Easy access to all the mechanical components to facilitate service and maintenance.
- High strap tension, up to 1250 lbs.
- Modular adaptation to type and size of package.
- Easy to integrate into existing conveyor lines. Adjustable height.
- Fully electric, 3-ph. + N.
- All machine functions are controlled electronically, with clear text display for operator guidance.
- The bottom section of the strapping arch can be a standard under track style (XF) or a pallet lance for through pallet strapping (XP).
Machine Weight | Determined by customer requirements |
Machine Dimensions | Determined by customer requirements |
Max. load size | 82” W x 78” H |
Min. load size | 20” W x 8” H |
Max. load weight | limited to conveyor capacity |
Power Requirements | 3/N/PE 220-480V 50/60Hz |
Tension |
1,250 lbs. (CFH -1) 500 lbs. (CFL-2) |
Strap Size |
9mm-19mm (3/8” – 3/4") |
Strap Thickness |
0.4mm-1.2mm (0.015” – 0.044”) |
Strap Core Size |
16” |
Sealing Method |
Friction -weld |
Materials
Materials
Shipping & Returns
Shipping & Returns
Dimensions
Dimensions
Care Instructions
Care Instructions

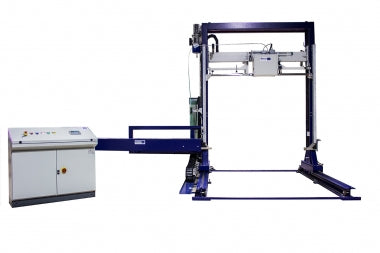

![Cyklop XF/XP 111M Strapping Machine](http://www.polaris-systems.net/cdn/shop/products/Cyklop_XF_XP_111Strapping_Machine_jDHtSTd.jpg?v=1621382006&width=1445)
