Cyklop

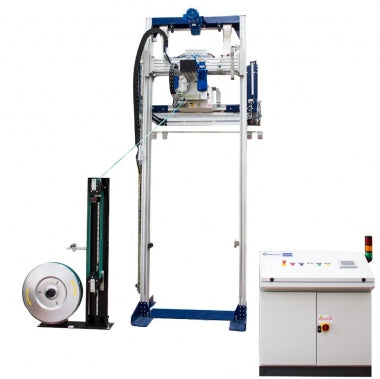

Cyklop XF 172 M┃Automatic Strapping Machines

Automatic Horizontal Strapping Machine

Designed to seamlessly integrate into any existing production lines and horizontally strap whole pallets or single layers. The XF 172 is equipped with leading strapping technology, the Cyklop CFH-1 strapping head including multi-stage tensioning (max 1250 lbs) and is electronically controlled with 5.7” touch panel display.



  • Compact, minimal space required.
  • Easy access to all the mechanical components to facilitate service and maintenance.
  • High strap tension, up to 1250 lbs.
  • Modular adaptation to type and size of package.
  • CFH-1 or CFL-2 strapping head is maintenance-friendly.
  • Easy to integrate into existing conveyor lines. Adjustable height.
  • Fully electric, 3-ph. + N.
  • All machine functions are controlled electronically, with clear text display for operator guidance.
  • The exact strapping height can be achieved with the "teach-in" software.
  • The strapping head driving device (500 mm) and the strap tensioning equalizer are standard.



Machine Weight Determined by customer requirements
Machine Dimensions Determined by customer requirements
Max. load size 55” W x 91” H x 55“ L
Min. load size 36” W x 3” H x 32“ L
Max. load weight limited to conveyor capacity
Power Requirements 3/N/PE 220-480V 50/60Hz
Tension 1,250 lbs. (CFH -1) 500 lbs. (CFL-2)
Strap Size 9mm-19mm (3/8” – 3/4")
Strap Thickness 0.4mm-1.2mm (0.015” – 0.044”)
Strap Core Size 16”
Sealing Method Friction -weld
