Cyklop
Cyklop Twin/Duo Pack 111/112┃Strapping and Wrapping Systems
Strapping and Wrapping System

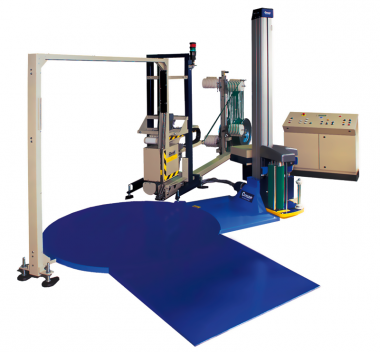

Integrated strapping and wrapping system of approved Cyklop machines. The 111 models consist of either XF/XP 111 M or SF/SP 111 M automatic top sealing vertical strapping machine and a GL 215 or CST 212 stretch wrapping machines. While the 112 models consist of the either XF/XP 112 M or SF/SP 112 M automatic side sealing vertical strapping machine and a GL 215 or CST 212 stretch wrapping machines. Both these models can be equipped with either of Cyklop’s CFH-1 or CFL-2 strapping heads which use industry leading strapping technology, including multi-stage tensioning (max 1250 lbs) and have a central control that ensures optimal operation, as the wrapping and strapping programs are used together in combination, to suit the customers exacting requirements.
- Easy access to all the mechanical components to facilitate service and maintenance.
- High strap tension, up to 1250 lbs.
- Modular adaptation to type and size of package.
- CFH-1 or CFL-2 strapping head is maintenance-friendly.
- Easy to integrate into existing conveyor lines. Adjustable height.
- All machine functions are controlled electronically, with clear text display for operator guidance.
- The bottom section of the strapping arch can be a standard under track style (XF) or a pallet lance for through pallet strapping (XP).
- Wrapping loosely stacked pallet loads with stretch film
- Adaptation to diverse pallet sizes and loads per adjustable wrapping programmes
- Variably adjustable parameters per control panel
- For standard and pre-stretch film
- Robust and reliable construction, stable basic frame of welded rectangular pipes
Machine Weight | Determined by customer requirements |
Machine Dimensions |
Determined by customer requirements |
Max. load size | 47” W x 98” H x 39” L |
Min. load size | 12” W x 12” H x 12” L |
Max. load weight | 4400 lbs (2000 kg) |
Strap Size | 9mm-19mm (3/8” – 3/4") |
Strap Core Size | 16” |
Power Requirements | 120 VAC. 15 Amp. |
Sealing Method | Friction -weld |
