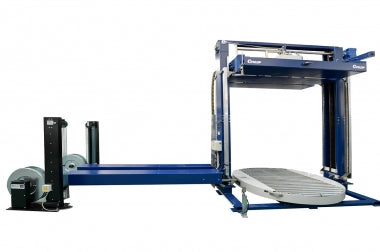

Cyklop SPE┃Automatic Strapping Machines

Compressing Automatic Strapping Machine

The Cyklop SPE has the capability of pressing 1000-3000 kg. The SPE can be equipped with either of Cyklop’s CFH-1 or CFL-2 strapping heads which use industry leading strapping technology, including multi-stage tensioning (max 1250 lbs) and is electronically controlled with 5.7” touch panel display. The Cyklop SPE can be easily integrated into a number of conveyer systems to suit any of your needs including palletised and palletless strapping options and can also be outfitted with two strapping heads rather than one. It comes in 2 models the SPE 2200 (4850 lbs max. compression) or SPE 3000 (6600 lbs max. compression)



  • Basic frame, consisting of upper cross beams and two lifting columns with integrated chains or toothed rods, maintenance-free guide elements and standardised connection points for materials handling components
  • Compression plate with strapping head mounts, chain sprocket drive or gearwheel drive with servo-controlled asynchronous motor and top-quality, maintenance-free guide shoes
  • Optimum strapping results due to high, constant tensioning and retaining force (1250 max)
  • Adjustable compaction of the package (3000kg max)
  • Easy to integrate into existing systems
  • Vertical cross strapping possible, e.g. by turntable or lifting/turning cross
  • Easy and fast operator control from 5.7" colour touch panel
  • Easy and fast operator control from 5.7" colour touch panel



Machine Weight   8800 lbs ( 4,000 kg)
Machine Dimensions 120” W x 166” H
Max. load size 98” W x 118” H (depending on arch packages)
Min. load size 32” W x 16” H
Max. load weight 3,300 lbs.
Power Requirements 400 V 3F N T -50 HZ 24 V DC 2.5 kW
Tension 1,250 lbs.
Strap Size 9mm-19mm (3/8” – 3/4")
Strap Thickness 0.4mm-1.2mm (0.015” – 0.044”)
Strap Core Size 16"
Sealing Method Friction -weld
