Cyklop

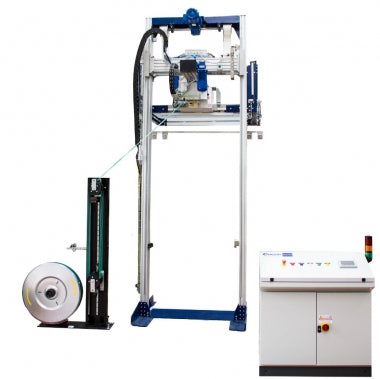

Cyklop SF 172 M┃Automatic Strapping Machines

Automatic Horizontal Strapping Machine

Designed to seamlessly integrate into any existing production lines and horizontally strap whole pallets or single layers. It can be equipped with either of Cyklop’s CFH-1 or CFL-2 strapping heads which use industry leading strapping technology, including multi-stage tensioning (max 1250 lbs) and is electronically controlled with 5.7” touch panel display. The SF 172 M can also be optimized further with movable or floating strapping heads, pneumatic strap guides, and be installed on rails in order to become moveable.



  • Compact, minimal space required.
  • Easy access to all the mechanical components to facilitate service and maintenance.
  • Easy access to all the mechanical components to facilitate service and maintenance.
  • Modular adaptation to type and size of package.
  • CFH-1 or CFL-2 strapping head is maintenance-friendly.
  • Easy to integrate into existing conveyor lines. Adjustable height.
  • Fully electric, 3-ph. + N.
  • All machine functions are controlled electronically, with clear text display for operator guidance.
  • The exact strapping height can be achieved with the "teach-in" software.
  • The strapping head driving device (5 00 mm) and the strap tensioning equalizer are standard.



Machine Weight Determined by customer requirements
Machine Dimensions Determined by customer requirements
Max. load size 40” W x 91” H x 71“ L (depending on arch packages)
Max. load weight limited to conveyor capacity
Power Requirements 400 V 3F N T -50 HZ 24 V DC 2.5 kW
Tension 1,250 lbs. (CFH -1) 500 lbs. (CFL-2)
Strap Size 9mm-19mm (3/8” – 3/4")
Strap Thickness 0.4mm-1.2mm (0.015” – 0.044”)
Strap Core Size 16"
Sealing Method 0.4mm-1.2mm (0.015” – 0.044”)
