Cyklop

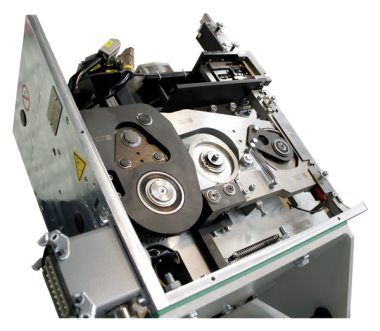

Cyklop CFL-2 Strapping Head┃Strapping Machines

Strapping Head

Equipped with an innovative, intelligent direct drive that guarantees optimal holding power and reproducibility of tension and joint strength. The CFL-2 applies a max tension of 500 lbs, to both polypropylene (PP) and polyester (PET) strapping with widths of 9mm-12mm (3/8”-1/2”) and thicknesses of 0.4mm – 0.8mm (0.016”-0.030”)



  • Teflon-coated gears preventing the need for lubrication
  • Innovative multi stage tensioning
  • Inside head protected from dust and dirt to avoid extra cleaning
  • Exchangeable clamping jaws without disassembly
  • Smoke free friction weld with excellent energy efficiency
  • High speed strap feed with maximum tension of 500 lbs.
  • High reproducibility of strap tensioning and sealing strength
  • Ability to strap embossed or smooth polypropylene (PP) or polyester PET strapping from 3⁄8" to 1/2 " wide and .015" to 0.030" thick.



Machine Weight 170 lbs
Machine Dimensions 15.5” L x 17.5” W x 11” H
Power Requirements 48 V DC, 24V DC, 0.5 kw
Cycle Time 1.5-2.0 sec per weld
Tension 500 lbs
Strap Size 9mm-19mm (3/8” – 1/2")
Strap Thickness 0.4mm-0.8mm (0.015” – 0.030”)
Sealing Method Friction-weld
