Cyklop

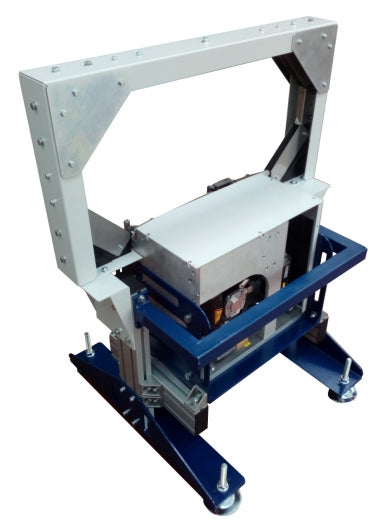

Cyklop SF 113 M┃Strapping Machines
Automatic Bottom Sealing Vertical Strapping Machine
From Cyklop’s new Smart line; It can be equipped with either of Cyklop’s CFH-1 or CFL-2 strapping heads which use industry leading strapping technology, including multi-stage tensioning (max 1250 lbs) and is electronically controlled with 5.7” touch panel display. It is designed to seamlessly integrate into any existing production lines.
- Compact and rugged structure assuring minimal space requirements and equipment longevity.
- Easy access to all the mechanical components to facilitate service and maintenance.
- High strap tension, up to 1250 lbs.
- Modular adaptation to type and size of package.
- CFH-1 or CFL-2 strapping head is maintenance-friendly.
- All machine functions are controlled electronically, with clear text display for operator guidance.
- Easy to integrate into existing conveyor lines. Adjustable height.
Machine Weight | Determined by customer requirements |
Machine Dimensions | Determined by customer requirements |
Max. load size | 18” W x 20” H |
Min. load size | 3” W x 1¾” H |
Max. load weight | limited to conveyor capacity |
Power Requirements | 400 V 3F N T -50 HZ 24 V DC 2.5 kW |
Tension | 1,250 lbs. (CFH -1) 500 lbs. (CFL-2) |
Strap Size | 9mm-19mm (3/8” – 3/4") |
Strap Thickness | 0.4mm-1.2mm (0.015” – 0.044”) |
Strap Core Size | 16" |
Sealing Method | Friction -weld |
